Automatic Broiler Chicken Cage Drawing
Cage and frame side view
Take 60,000 Chickens Per Shed as Example
| Technical Parameters | |||||||||
| Chicken house size | Cage mode | Cage quantity | Installation size of one set cage | One-tier cage size | Breeding area and number of animals per section (single layer) | Chicken quantity per unit | Chicken quantity per shed | Average chicken weight | |
| 90m(L)×16.5m(W)×3.5m(H) | H type, 3 tiers | 55 sets/row, 5 rows | 1.5m(L)*1.8m(W)*3.1m(H) | 1.5m(L)*1.8m(W)*0.55m(H) | 75 birds per 2.7㎡ | 225 | 61,875 | 1.8kg | |

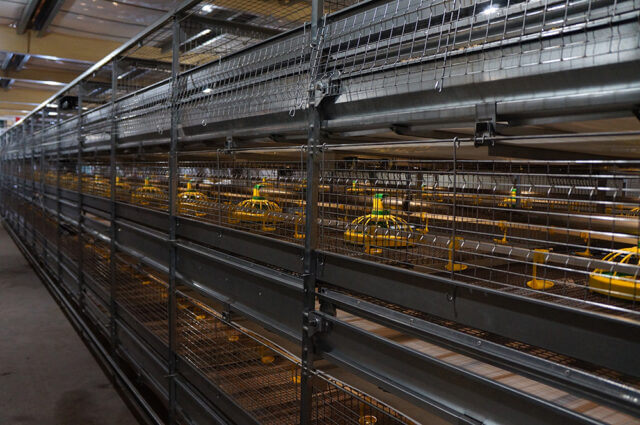

Automatic Broiler Chicken Cage Product Details
Cage and Frame
- Surface treatment: 275gsm zinc coating
Feed Silo
- 10T to 30T feed capacity is available
- Hot galvanized: 275g/㎡

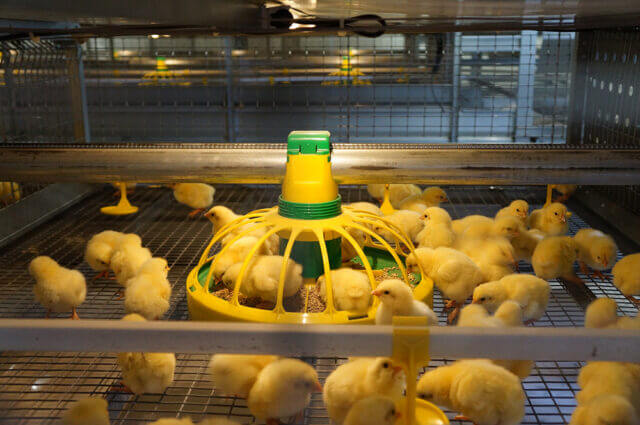

Pan Feeding System
- Feed sensor: IFM®
- Feed pipe: hot galvanized
Drinking System
- Two different water supply lines are placed in each cage with 8 to 12.
- 360° water supply of the nipples.

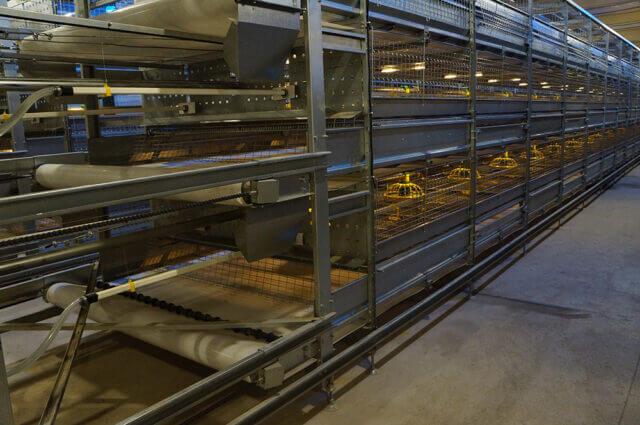

Manure Cleaning System
- PP belt, 1.2mm thickness
Automatic Ventilation
- Ideal environment for chickens with constant temperature and humidity
Automatic Lighting
- The lighting system is inside the cage, it is bright, non-glare, and flicker-free. Chicks can find the feed and water easily.
- Suitable light intensity promotes growth.
Steel Structure House
- Customized prefab steel structure chicken house based on the local environment
Turnkey Solutions
