Cage Free Chicken Farm Equipment

Cage Free Chicken Farm Equipment

Cage free chicken farm equipment is an ideal solution for raising broilers and chicks. This system frees the chickens from the constraints of the battery cage and allows them to move freely. It is more friendly to the growth of the chickens. In addition, the free movement of chickens can also improve the quality of eggs and broiler products.

Hightop cage free system includes automatic feeding equipment, automatic water feeder, optional poultry flooring system, chicken house ventilation and environmental control systems, etc. providing better living environment for poultry.

Generally the height of cage free chicken houses is between 2.5m-3.5m (at eaves). The width of the poultry house is decided according to the layout of equipment inside and cannot be too large considering ventilation. Steel structure poultry house is usually designed with the width of 8-15m. Length is better less than 140m.

Chicken house size recommendation
House size 85m*12m*3m House size 120m*15m*3m
Rows of feeder lines 3 Rows of feeder lines 4
Rows of water lines 4 Rows of water lines 5
No. of chicken per house 15000 No. of chicken per house 27000

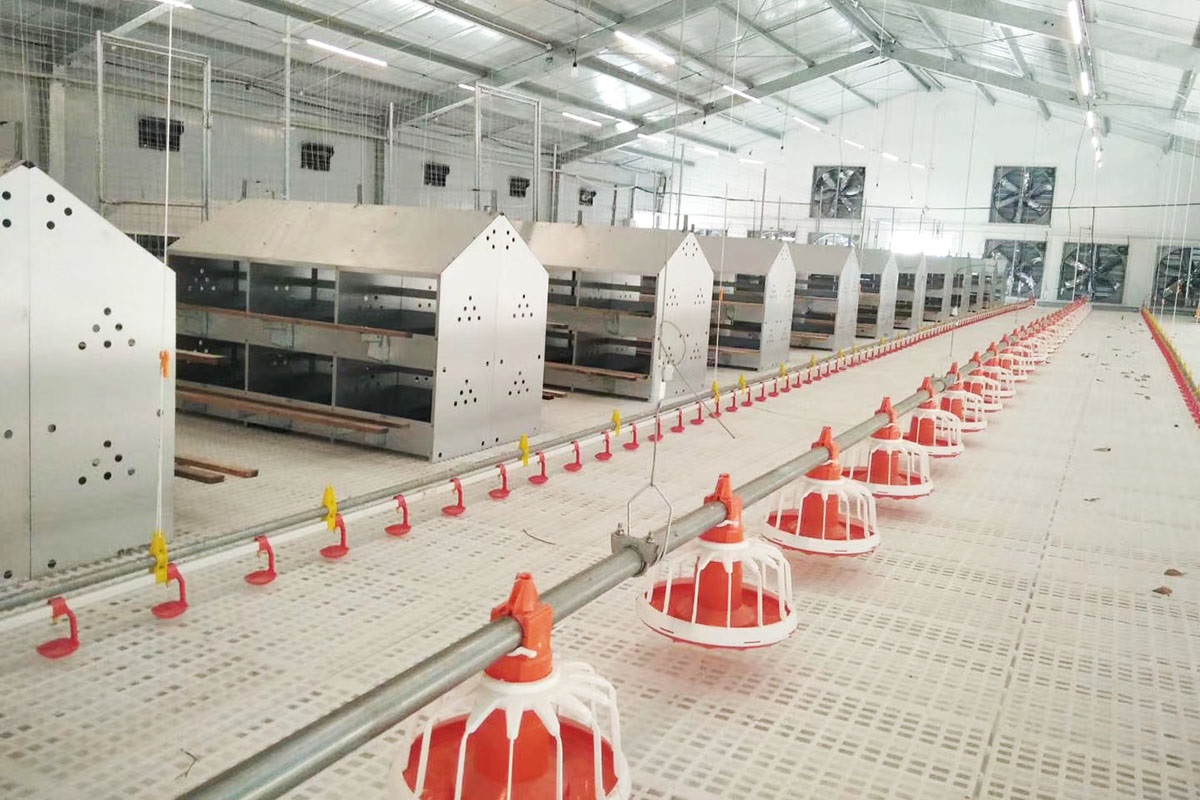

cage free chicken house

cage free broiler farm system

cage free broiler house

cage free chicken house

Features of Cage Free Chicken Farm Equipment

Feed Hopper

  • Material: galvanized steel
  • Wall thickness: 1.2mm
  • Zinc coated: 275g/m2
  • Large capacity

Driving motor

  • 0.75 KW, 220V, 3 phase, 60hz
  • Low noise

Automatic Chicken Feed Pan System

Automatic Chicken Feed Pan System

  • Material: 100% virgin PE material with anti-UV
  • Feed capacity: 55 birds/pan
  • Scope of application: Suitable for chickens 1 day old and above.
  • Easy to cleaning.
  • Bottom shape: available in wave-shape and flat bottom.

Feed pipe

  • Material: hot-dip galvanized steel
  • Zinc coated: 275g/m2
  • Wall thickness: 1.2mm

Automatic watering system

Pressure regulator: Flexible, adjustable, long service life

Steel and PVC Pipe Chicken Feeders and Water Systems

  • The water pipe connection is sealed to avoid the contact with air and dust, making water clean and fresh
  • The nipple drinker is designed with high sensitivity, which can ensure 360 degrees rotation.

pvc pipe chicken feeders and water systems

plastic poultry flooring system

Plastic Poultry Flooring System

  • Smooth surface, no sharp edge, burr-free.
  • Excellent corrosion resistant, anti-aging.
  • Surface width 25mm, the gap is 11mm or 21mm, surface is with non-slip streaks;
  • Size: width 500mm, length available in 1000, 1500, 2000, 3000mm, customization available.
  • Easy maintenance
  • Service life is about 10-15 years.
  • General applicable to all kind of poultry such as chicken, duck, turkey, goose, goat, pig, etc. It also can be used as floor in slaughtering room.

Advantage of environment control system

  • The system automatically controls the environment of your chicken house, provides fresh air, appropriate temperature and humidity for your birds, so that your poultry can provide maximum production.
  • The main cooling process is finished in the damp curtain. Evaporative cooling pads have a cross fluted configuration that it can provides maximum cooling when hot air pass through the wet evaporative curtain material. And the cool air is pumped and discharge to everywhere of the indoor workshop. In this way, most air problems of factory, such as the hot air, high temperature and poor ventilation can be solved easily.

Poultry house ventilation system

Ventilation Fan system

  • Fan Blade: composed of Krupp stainless steel, made by punch forming, ensuring no dust. Attractive and durable.
  • Motor: both Chinese famous motors and Siemens motors are available. Motor voltage and frequency may be customized.Motor protection grade: IP55; Insulation class: Grade F
  • Fan Belt Pulley: composed of high strength aluminum-magnesium alloy by die- -casting which reduces the weight oftheblade impeller and provides it with complete, high corrosion resistance.
  • Fan Bearing: adopts imported double- row bearings with special waterproof design, ensuring water does not enter. EXhoisnigh strength, lower noise, is maintenance free and has a long service life.

poultry house cooling pad system

Cooling Pad System

  • High water absorption, mildew resistance, long service life
  • Large evaporation area, cooling efficiency ≥ 80%
  • Involves active surface agents which absorb water naturally, allowing for rapid penetration and lasting effectiveness.
  • Harmless to humans and animals.
  • Frame material: Galvanized sheet, stainless steel, or aluminum alloy, etc.

Environmental control equipment

  • The environmental control system monitors the environmental data of the chicken shed constantly based on temperature and humidity sensordata. It controls the cooling fans,cooling pads and the clear story automatically by a microcomputerintegrated system.

poultry house environment control system
